Cast Iron GSP10 Dry Scroll Vacuum Pump 53kg 35m³/h oil free pump

Brand Name : BSC

Model Number : GSP10

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Negotiate

Payment Terms : T/T

Supply Ability : 100 sets per month

Delivery Time : 5-30 days

Packaging Details : wooden box

Ultimate Vacuum : 0.01mbar

Color : blue grey

Speed : 10.5L/s

Material : Cast Iron

Operating Temp. : 5~40℃

Dimensions : 574*335*368mm

Surface : Painting

Weight : 53kgs

Contact Now

35 m³/h 1800 rpm Vacuum Pump, Oil Free Dry Scroll Pump GSP10

Description

Scroll pump is new kind of oil-free mechanical pump with features of simple construction,good sealing,high vacuum etc.As a high technology products,it have highly technical requirement in the design and manufacture.With benefits of low consumption, long working-life,high reliability and low noise,it have incomparable advantage in the application of clean process and have popular use in the market. In order to meet the featured application requirement of domestic and oversea customer,Baosi Vacuum developed the GVD and GSP series dry scroll pump with excellent performance and high cost efficiency.

Technical Data

Model		GSP10
Nominal rotational speed	rpm	1800
Displacement	m³h^-1	35
Motor power	W	1100
Voltage input	V	1-ph, 100-240/3-ph,200-460
Noise level	dB (A)	56
Inlet flange	-	NW40
Exhaust flange	-	NW25
Max water vapour pumping rate	gh^-1	200
Leak tightness	mbar ls^-1	＜1×10^-6
Weight	kg	53
Cooling Method	-	Air cooled

Performance Curve

Cast Iron GSP10 Dry Scroll Vacuum Pump 53kg 35m³/h oil free pump

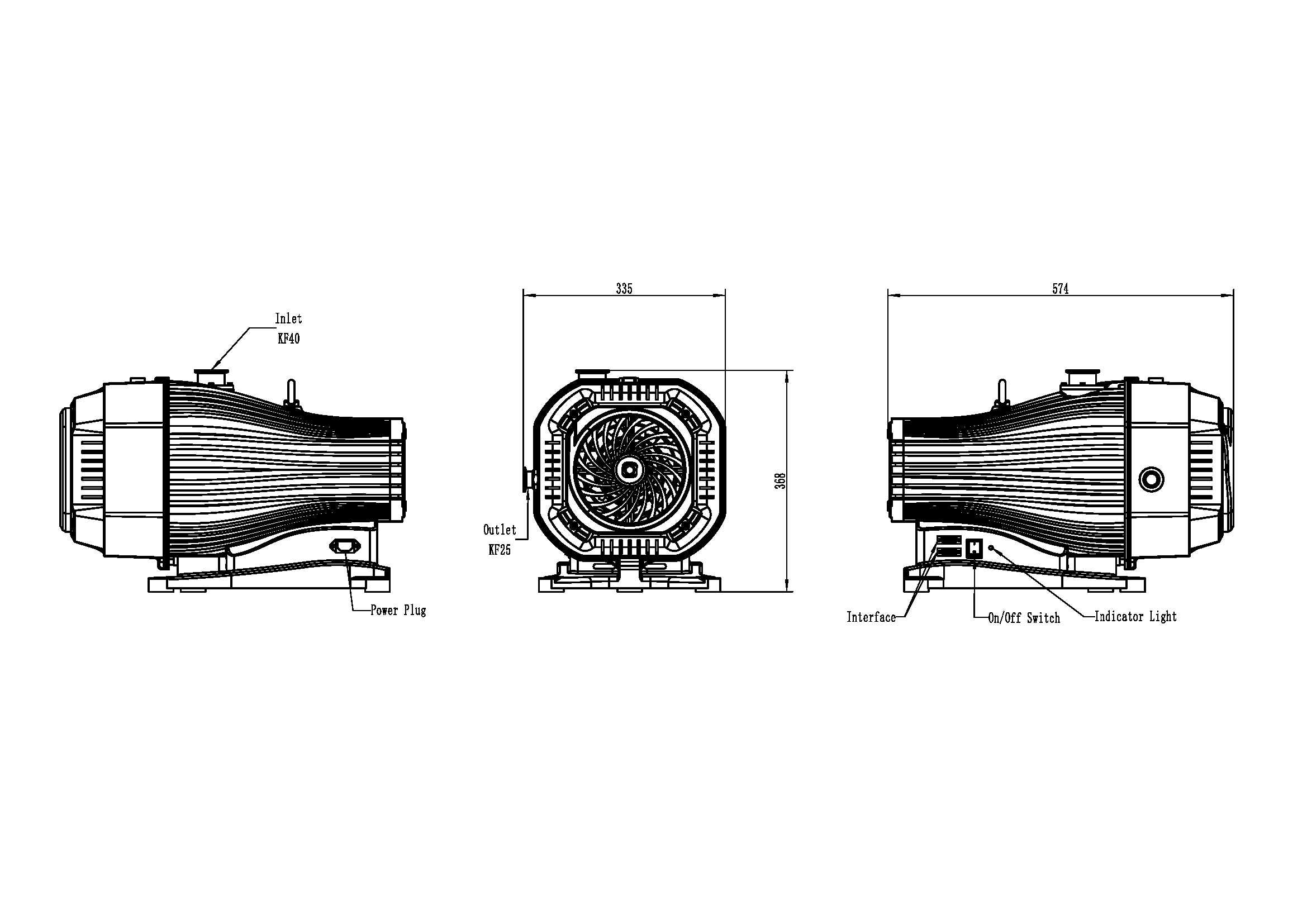

Dimensions

Cast Iron GSP10 Dry Scroll Vacuum Pump 53kg 35m³/h oil free pump

Application

Electron microscopy
High energy physics
Mass spectrometry
Glove box
Beam welding/laser welding
Space simulation
Coating(PVD/CVD)
